MFX400 0.6/1 kV Fire Barriers + HEPR Insulated, LSOH (SHF1) Sheathed, Screened Fire Resistant Power & Control Cables (Multicore)

MFX400 0.6/1 kV Fire Barriers + HEPR Insulated, LSOH (SHF1) Sheathed, Screened Fire Resistant Power & Control Cables (Multicore)

Application
These cables are used for fixed installations fixed installations on ships and offshore units in all locations and on open deck in safety circuits, where fire resistance is required. The good screening qualities of the copper braid also reduce radio interference and electrical influences to electronics installations. These cables are fire resistant, flame retardant, low smoke& halogen free.

Standards
 DIN 89160/98
 IEC 60092-353
 IEC 60331-21
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

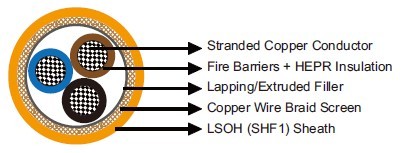

Construction
 Conductors: Class 2 stranded copper conductor.
 Insulation: Fire barriers + HEPR.
 Inner Covering: Lapping or extruded filler.
 Overall Screen: Copper wire braid.
 Outer Sheath: LSOH (SHF1).

Core Identification
Two cores: Black, Blue.
Three cores: Black, Blue, Brown.
Four cores: Black, Blue, Brown, Black.
Five cores: Black, Blue, Brown, Black, Black.
Multi cores: All cores natural coloured, printed with numbers, starting in center with number 1.
Cables with 3 cores and more also with green/yellow core (has to be stated in order).

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -20℃ ~ +75℃

Dimensions and Weight

Part No.

Construction
No. of cores×Cross
section(mm²)

Nominal Insulation Thickness
mm

Nominal Sheath Thickness mm

Nominal Overall
Diameter mm

Nominal Weight kg/km

MFX400-1mG7MZ1-R-2C1.5

2×1.5

0.7

1.2

12.5

210

MFX400-1mG7MZ1-R-2C2.5

2×2.5

0.7

1.2

13.0

250

MFX400-1mG7MZ1-R-2C4

2×4

0.7

1.3

14.0

300

MFX400-1mG7MZ1-R-2C6

2×6

0.7

1.3

16.0

410

MFX400-1mG7MZ1-R-2C10

2×10

0.7

1.4

18.0

550

MFX400-1mG7MZ1-R-2C16

2×16

0.7

1.5

20.0

720

MFX400-1mG7MZ1-R-2C25

2×25

0.9

1.6

23.5

1050

MFX400-1mG7MZ1-R-3C1.5

3×1.5

0.7

1.2

13.0

230

MFX400-1mG7MZ1-R-3C2.5

3×2.5

0.7

1.2

14.0

280

MFX400-1mG7MZ1-R-3C4

3×4

0.7

1.3

15.0

350

MFX400-1mG7MZ1-R-3C6

3×6

0.7

1.3

16.5

480

MFX400-1mG7MZ1-R-3C10

3×10

0.7

1.4

19.0

670

MFX400-1mG7MZ1-R-3C16

3×16

0.7

1.5

21.0

870

MFX400-1mG7MZ1-R-3C25

3×25

0.9

1.7

24.5

1300

MFX400-1mG7MZ1-R-3C35

3×35

0.9

1.8

27.0

1680

MFX400-1mG7MZ1-R-3C50

3×50

1.0

2.1

30.5

2190

MFX400-1mG7MZ1-R-3C70

3×70

1.1

2.0

35.0

3020

MFX400-1mG7MZ1-R-3C95

3×95

1.1

2.3

39.5

4050

MFX400-1mG7MZ1-R-3C120

3×120

1.2

2.5

44.0

5000

MFX400-1mG7MZ1-R-4C1.5

4×1.5

0.7

1.2

13.5

270

MFX400-1mG7MZ1-R-4C2.5

4×2.5

0.7

1.3

15.0

330

MFX400-1mG7MZ1-R-4C4

4×4

0.7

1.3

16.5

460

MFX400-1mG7MZ1-R-4C6

4×6

0.7

1.4

18.0

560

MFX400-1mG7MZ1-R-4C10

4×10

0.7

1.5

20.5

790

MFX400-1mG7MZ1-R-4C16

4×16

0.7

1.6

23.0

1090

MFX400-1mG7MZ1-R-4C25

4×25

0.9

1.8

27.0

1630

MFX400-1mG7MZ1-R-5C1.5

5×1.5

0.7

1.3

14.5

320

MFX400-1mG7MZ1-R-5C2.5

5×2.5

0.7

1.3

16.5

440

MFX400-1mG7MZ1-R-7C1.5

7×1.5

0.7

1.3

16.5

400

MFX400-1mG7MZ1-R-10C1.5

10×1.5

0.7

1.3

19.5

450

MFX400-1mG7MZ1-R-12C1.5

12×1.5

0.7

1.4

20.0

510

MFX400-1mG7MZ1-R-14C1.5

14×1.5

0.7

1.4

21.0

570

MFX400-1mG7MZ1-R-16C1.5

16×1.5

0.7

1.4

22.0

640

MFX400-1mG7MZ1-R-19C1.5

19×1.5

0.7

1.5

23.5

730

MFX400-1mG7MZ1-R-24C1.5

24×1.5

0.7

1.6

27.0

910
